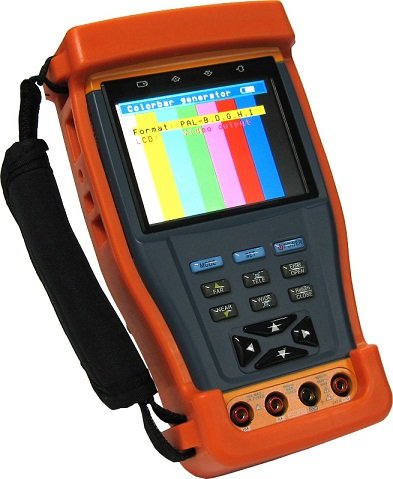

VTooLand (TM) Stest-894 3.5" inch LCD Monitor CCTV Security Tester Multimeter Camera Video PTZ Test 12V


Searching for the best VTooLand (TM) Stest-894 3.5" inch LCD Monitor CCTV Security Tester Multimeter Camera Video PTZ Test 12V; Congratulations! Check the specifications, features and feedback from customer feedback include price controls and information more satisfactory VTooLand (TM) Stest-894 3.5" inch LCD Monitor CCTV Security Tester Multimeter Camera Video PTZ Test 12V product reviews!

NTSC/PAL (Auto adapt)

Display

3.5 inch digital TFT-LCD ,960 x 240 resolution

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel Output

Video Output Mode

1.0 Vp-p

PTZ controller

Communication

RS232, RS422 simplex and RS485

PTZ Protocol

Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Baud Rate

150,300,600,1200,2400,4800,9600,19200bps

Video Signal Generation

Color bar generation

Output channel colorbar video signal for testing monitor or video cable

UTP CABLE TEST

UTP cable test

Test UTP cable connection status and display in the screen.Read the number of the test box.

DC12V 1A power output

DC12V power output

Output DC12V1A power for camera

Audio input test

Audio input test

test the pickup and other audio equipments on the front-end

RS485 data analyst

Data Monitor

Captures and analyzes the command data from controlling device

Digital Multimeter

Reading range

-6600~+6600

AC/DC Voltage

0-600V Auto/Manual ranging, 0.1mV resolution

AC/DC Current

6.6mA, 66mA, 660mA, 10A Manual ranging

Resistor

660, 6.6K, 66K, 660K, 6.6M, 66M? auto/manual range

Continuity

Built-in buzzer will sound, if resistance is lower than 50?

Diode

2.0V Range, 1mV resolution

Capacitor

6600pF~66,000?F auto/manual range

POWER

Power Adapter

DC5V, 2A


Built-in 3.7V Lithium polymer battery ,3000mAh

VTooLand (TM) Stest-894 3.5" inch LCD Monitor CCTV Security Tester Multimeter Camera Video PTZ Test 12V
Product By : VTooLand

VTooLand (TM) Stest-894 3.5" inch LCD Monitor CCTV Security Tester Multimeter Camera Video PTZ Test 12V

.

Features
  • Sold by OBD-Hotsales,if any questions please email us.
  • The STest-894 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, DC12V1A power for camera, Audio input test, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.
  • Applications: - CCTV system installation and maintenance - Dome camera and All in one camera testing - The CCTV transmitting channel testing - PTZ controller
  • Package Includes: - 1x CCTV Tester(Defualt English Version) - 1x Rechargable Li-ion Battery(built-in) - 1x Rubber Case - 1x Carrying Bag - 1x LAN Cable Tester - 1x BNC Cable - 1x RS485 Data Cable - 1x Safety Cord - 1x User Manual - 1x A/C Adapter(100-240V, with plug for worldwide use: US, AU, UK or Europe)
  • Features: - 3.5"TFT-LCD , 960?H?×240?V?resolution. - DC12V 1A power output for camera - Audio input test - PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position - Video displaying. Automatically adapts and displays the video format of NTSC/PAL. - LCD Brightness/Contrast/Color Saturation are adjustable. - Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system switchable, transmit/receive seven-system colorful imagines) - Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out the problem. - Cable testing. It is powerful in testing LAN cable, measuring the connecting status ?displaying the sequence of connection and the NO. of the LAN cable. - Multi-interface and Multi-baud rate. Support RS232 ,RS485 and RS422 interface; baud rate ranging from 150, 600 to 19200bps. - Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc. - Lithium Ion Polymer Battery (3.7V DC3000mAh). The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environmental protection. It can last 12 hours for normal use after charging for 4 hours. - Digital Multimeter performs AD/DC Voltage, AC/DC Current, Resistance, Continuity, Capacitance and Diode test, Auto / Manual Range, Data hold, Relative measuring.
